XC® XlamConcrete by MMK / Mayr-Melnhof Holz / M / List of exhibitors / BAU 2025 / All events /

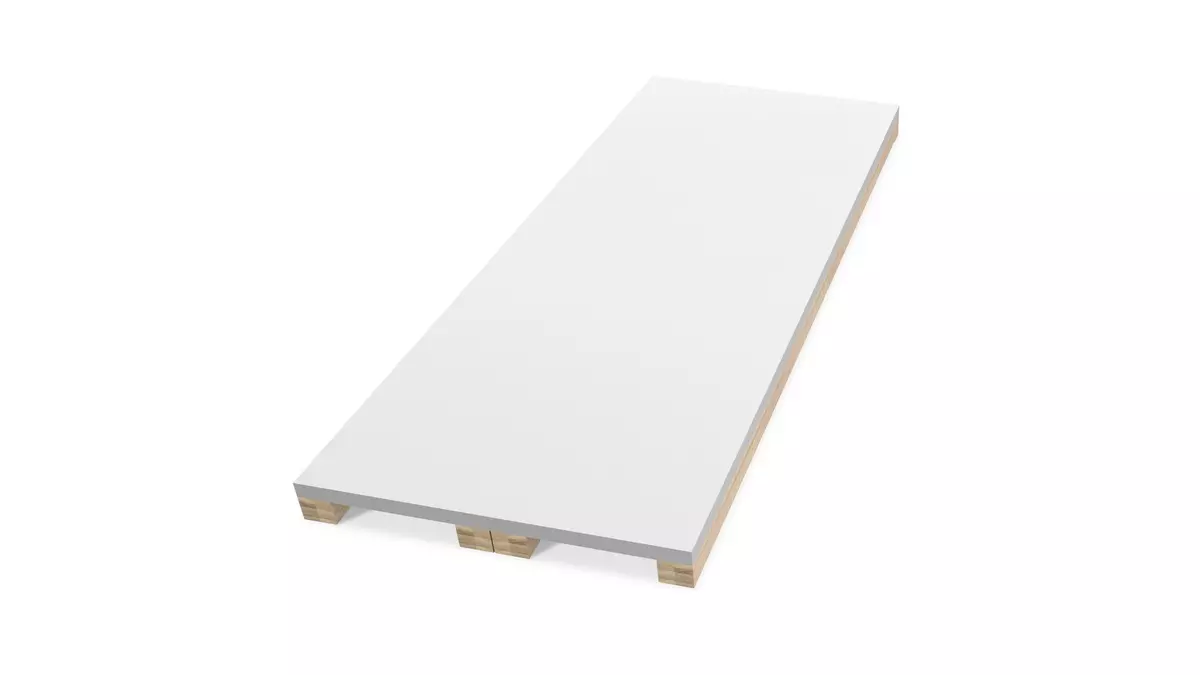

Prefabricated timber-concrete composite floor consisting of MM crosslam CLT and a concrete topping layer

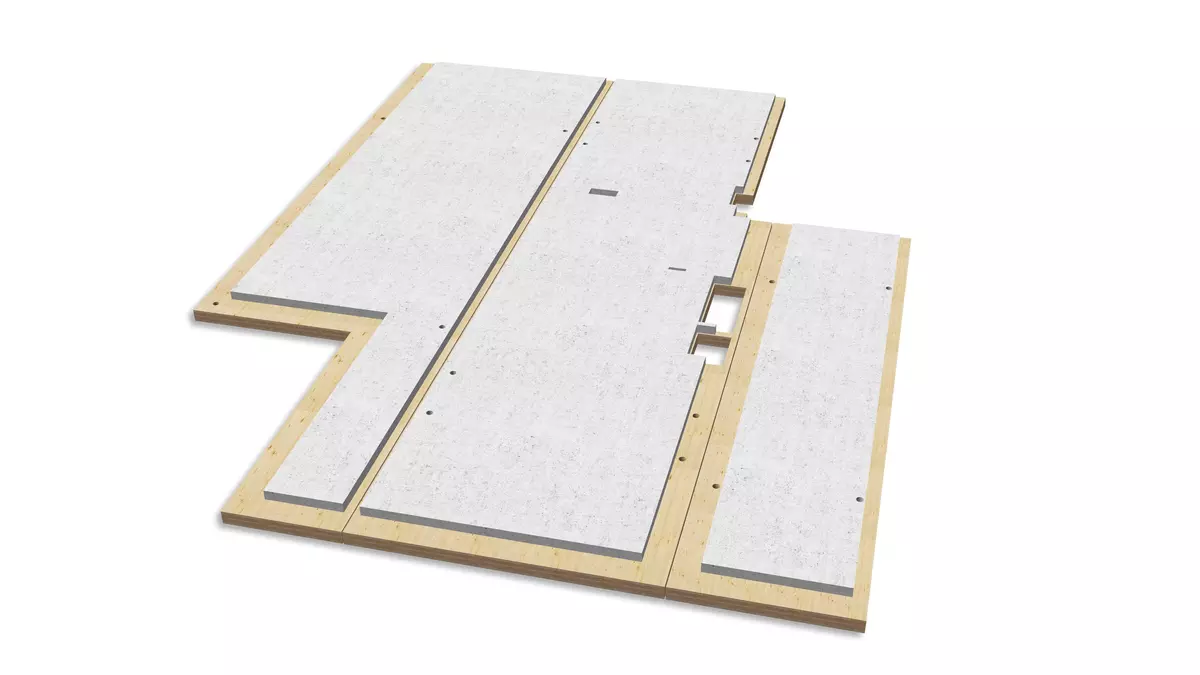

Wood-concrete composite prefabricated ceiling made of MM masterline glulam and a concrete topping layer

With timber-concrete composite ceilings (HBV ceilings), the tension-resistant wood is arranged on the underside and the pressure-resistant concrete on the top
Photocredit: MM Holz

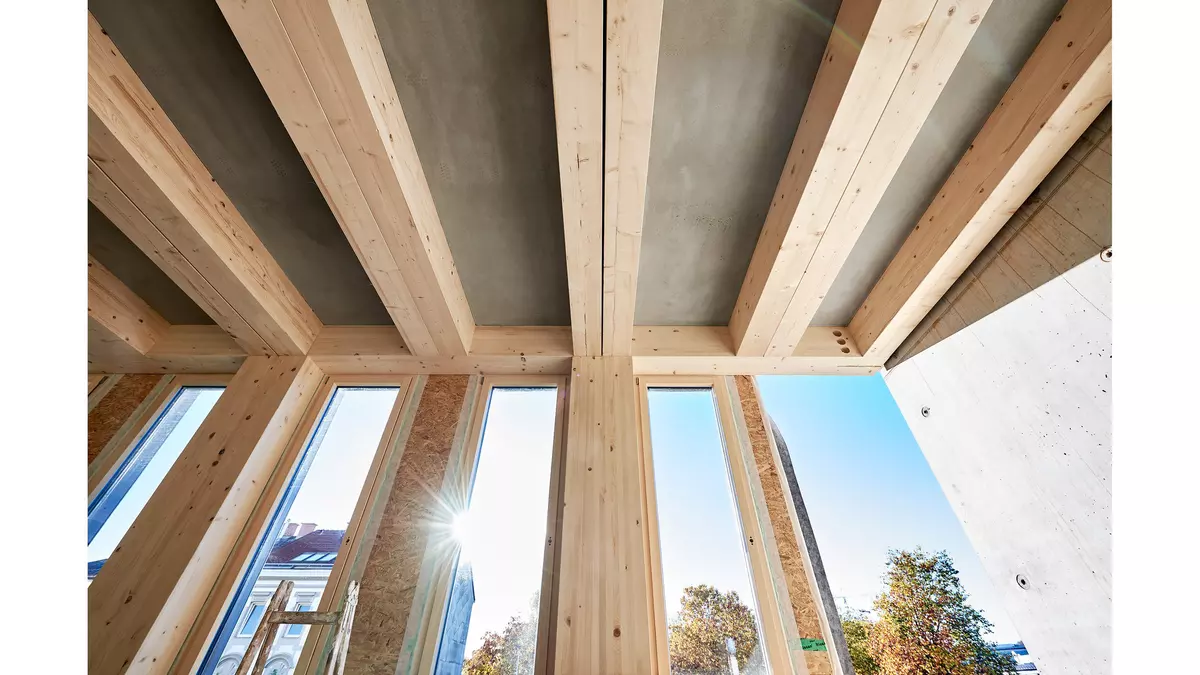

More than 3,950 m² of XC®-office elements, each up to 8.3 m long, made of glulam spruce are installed in MIC's new HQ in Linz (AT)
Photcredits: Toni Rappersberger

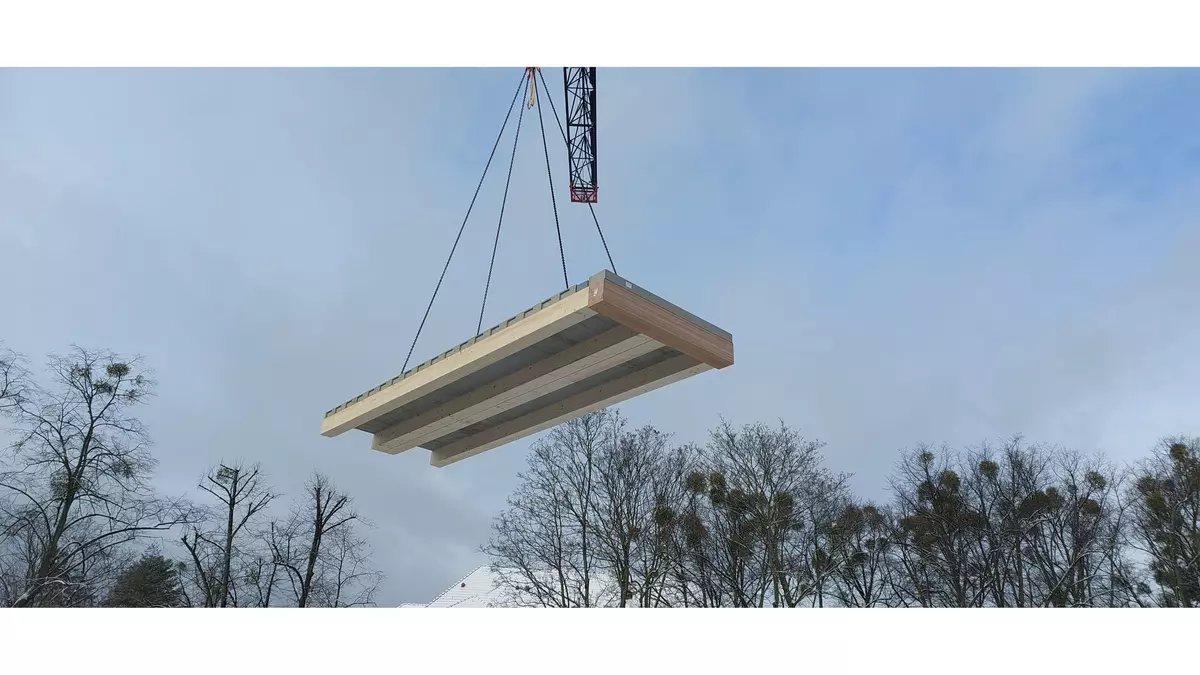

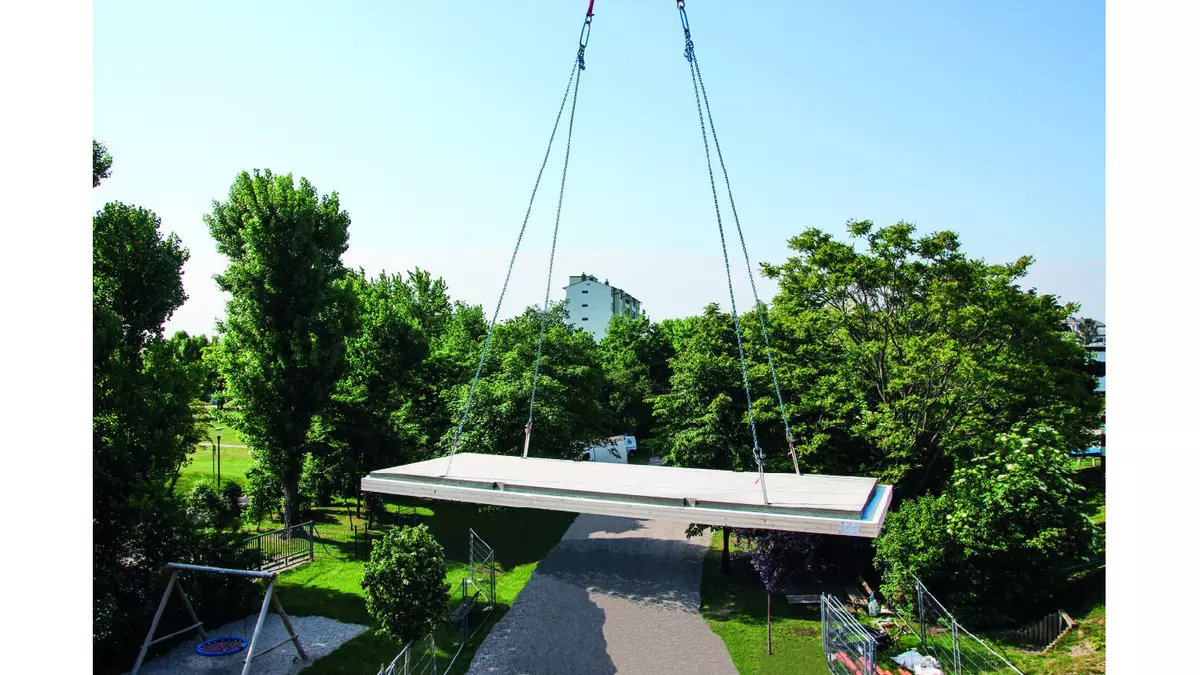

XC® elements are prefabricated in the factory. This means that the entire assembly of the load-bearing building structure can be carried out on site in one go
Photocredit Knoflach

Prefabricated timber-concrete composite floor consisting of MM crosslam CLT and a concrete topping layer

Wood-concrete composite prefabricated ceiling made of MM masterline glulam and a concrete topping layer

With timber-concrete composite ceilings (HBV ceilings), the tension-resistant wood is arranged on the underside and the pressure-resistant concrete on the top
Photocredit: MM Holz

More than 3,950 m² of XC®-office elements, each up to 8.3 m long, made of glulam spruce are installed in MIC's new HQ in Linz (AT)
Photcredits: Toni Rappersberger

XC® elements are prefabricated in the factory. This means that the entire assembly of the load-bearing building structure can be carried out on site in one go
Photocredit Knoflach

XC® XlamConcrete by MMK

Mayr-Melnhof Holz

Is a product of Mayr-Melnhof Holz

Product benefits

Forward-looking, sustainable and optimally combined.

Product description

XC® components are pre-fabricated, large-format and standardised panel-shaped timber concrete composite elements for structural civil engineering purposes. For instance, this hybrid is used for high-quality floors and partition ceilings in multi-storey residential and office buildings. XC® combines the properties of both perfectly: Cross-laminated timber – which is also available in visible quality – takes care of the tensile forces that occur in the structure's lower cross-section, while the concrete absorbs the compressive forces in the upper. As a building element, the XC® by MMK timber concrete composite element bridges large spans with an improved vibration behaviour and good sound insulation values. Its high degree of industrial prefabrication and flexible dimensions allow for fast and dust-free installation at the construction site.

XC® by MMK timber concrete composite elements were developed by Mayr-Melnhof Holz in cooperation with Kirchdorfer Fertigteilholding and are produced by their joint venture MMK Holz-Beton-Fertigteile GmbH.

XC® components are pre-fabricated, large-format and standardised panel-shaped timber concrete composite elements for structural civil engineering purposes. For instance, this hybrid is used for high-quality floors and partition ceilings in multi-storey residential and office buildings. XC® combines the properties of both perfectly: Cross-laminated timber – which is also available in visible quality – takes care of the tensile forces that occur in the structure's lower cross-section, while the concrete absorbs the compressive forces in the upper. As a building element, the XC® by MMK timber concrete composite element bridges large spans with an improved vibration behaviour and good sound insulation values. Its high degree of industrial prefabrication and flexible dimensions allow for fast and dust-free installation at the construction site.

XC® by MMK timber concrete composite elements were developed by Mayr-Melnhof Holz in cooperation with Kirchdorfer Fertigteilholding and are produced by their joint venture MMK Holz-Beton-Fertigteile GmbH.

XC® components are pre-fabricated, large-format and standardised panel-shaped timber concrete composite elements for structural civil engineering purposes. For instance, this hybrid is used for high-quality floors and partition ceilings in multi-storey residential and office buildings. XC® combines the properties of both perfectly: Cross-laminated timber – which is also available in visible quality – takes care of the tensile forces that occur in the structure's lower cross-section, while the concrete absorbs the compressive forces in the upper. As a building element, the XC® by MMK timber concrete composite element bridges large spans with an improved vibration behaviour and good sound insulation values. Its high degree of industrial prefabrication and flexible dimensions allow for fast and dust-free installation at the construction site.

XC® by MMK timber concrete composite elements were developed by Mayr-Melnhof Holz in cooperation with Kirchdorfer Fertigteilholding and are produced by their joint venture MMK Holz-Beton-Fertigteile GmbH.

Availability

Country availability for this product

Downloads

Links

Firmenzentrale MIC Linz (AT)

FUHUB Berlin (DE)

Grundschule Nohfelden (DE)

Firmenzentrale MIC Linz (AT)

FUHUB Berlin (DE)

Firmenzentrale MIC Linz (AT)

FUHUB Berlin (DE)

Grundschule Nohfelden (DE)

Contactperson

Sebastian Knoflach

Managing Director MMK and Head of Sales XC timber concrete composite element

+43 664 88539902 sebastian.knoflach@mm-holz.com
